Pick-Up Broom

Pick-Up Broom: The All-in-One Attachment for Sweeping & Collecting Debris

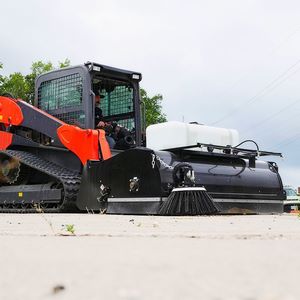

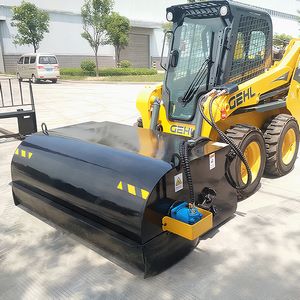

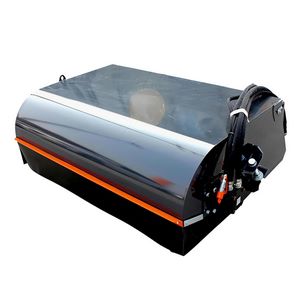

A Pick-Up Broom is a versatile hydraulic attachment designed to transform skid steers, excavators, loaders, or tractors into mobile sweeping-and-collecting machines. Unlike basic brooms that only push debris aside, it combines a rotating brush with an integrated collection system (hopper or side container) to sweep, lift, and store materials like debris, snow, dust, leaves, and loose aggregates. This dual-function design eliminates the need for separate sweeping and hauling steps, making it a game-changer for efficient site cleanup in construction, industrial, and landscaping applications.

How It Works

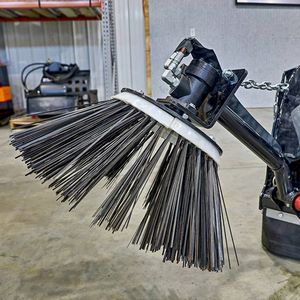

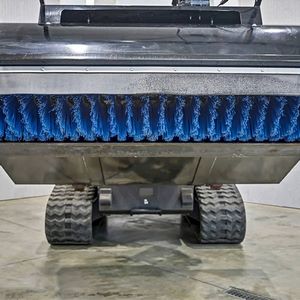

Powered by the host machine’s hydraulic system, the pick-up broom uses a high-speed rotating brush (steel wire, polymer, or hybrid bristles) to agitate and lift materials from surfaces. A key innovation is its collection mechanism: debris is guided by the brush into an integrated hopper (capacity: 0.2–1.5 m³) or side-mounted container, which can be hydraulically dumped once full. The brush’s angle is adjustable (±15° to ±30°) via a hydraulic tilt cylinder, allowing operators to target hard-to-reach areas (curbs, corners, under equipment) without repositioning the machine. Advanced models include optional water spray systems to suppress dust and replaceable brush segments for extended lifespan.

Key Advantages

• Sweep & Collect Efficiency: Clears and collects 150–600 m²/hour—6–10x faster than manual sweeping and bagging.
• Integrated Collection: Eliminates secondary hauling; hopper dumps directly into trucks or bins via hydraulic controls.
• Adjustable Precision: Tilt brush ±15°–30° to direct debris into the hopper, even in tight spaces.
• Multi-Material Versatility: Handles debris (wood, metal, plastic), snow, dust, leaves, and light aggregates with interchangeable brushes.
• Durable Construction: Built with Hardox® 400 steel frames, sealed bearings, and abrasion-resistant brushes for harsh conditions.
• Easy Integration: Fits 1–30 ton skid steers, 2–15 ton excavators, wheel loaders, or compact tractors via universal quick couplers.
• Low Maintenance: Self-lubricating pivot points and modular brush/hopper components simplify upkeep.

Technical Highlights

• Brush Width: 1.5–3.2 meters (59–126 inches, model-dependent for narrow/wide paths)
• Tilting Angle: ±15° to ±30° (hydraulically adjustable for directional control)
• Hopper Capacity: 0.2–1.5 m³ (8–53 cubic feet, gravity-fed or conveyor-assisted)
• Compatibility: Fits 1–30 ton skid steers, 2–15 ton excavators, wheel loaders, or compact tractors (20–120 HP)
• Collection Capacity: 150–600 m²/hour (material type/debris density-dependent)
• Brush Material: Steel wire (tough debris), polymer (delicate surfaces), or hybrid bristles
• Weight: 300–2,200 kg (balanced for host machine stability)
• Hydraulic Flow: 25–100 L/min (matches standard construction equipment systems)

Applications

• Construction Sites: Collect concrete chips, wood scraps, and metal debris from foundations, access roads, and stockpiles.
• Road Maintenance: Sweep and gather gravel, sand, litter, and light snow from highways, parking lots, and intersections.
• Industrial Facilities: Clean warehouse floors, loading docks, and factory yards of metal shavings, dust, or packaging waste.
• Landscaping: Gather leaves, grass clippings, and mulch from pathways, gardens, and public parks.
• Winter Operations: Collect light snow and ice pellets from walkways, ramps, and outdoor workspaces.
• Emergency Response: Clear debris (branches, rubble) from evacuation routes or disaster-affected zones.

From busy job sites to pristine industrial complexes, the pick-up broom delivers unmatched efficiency by combining sweeping and collecting in one attachment—reducing labor, time, and equipment costs for contractors and facility managers alike.
