Milling Excavator

Milling Excavator: The Ultimate Attachment for Precision Milling & Demolition

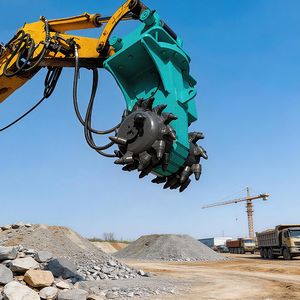

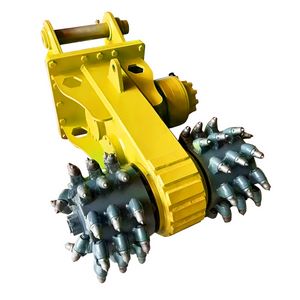

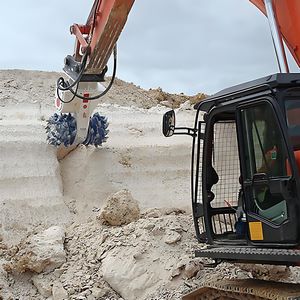

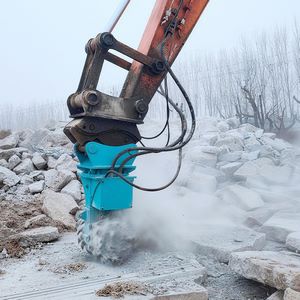

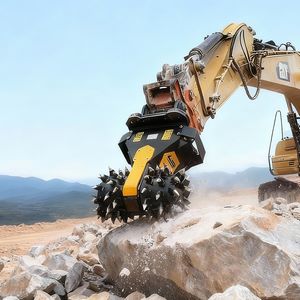

A Milling Excavator is a specialized hydraulic attachment that transforms standard excavators into powerful milling machines, designed for precision removal of asphalt, concrete, and other hard surfaces. By integrating a rotating milling drum (equipped with carbide-tipped cutters) onto the excavator’s arm, it enables controlled cutting, grinding, and removal of surface layers—making it indispensable for road repair, concrete demolition, and industrial surface preparation. This innovation eliminates the need for standalone milling machines, offering flexibility, cost savings, and access to tight spaces where traditional equipment cannot reach.

How It Works

Powered by the excavator’s hydraulic system, the milling excavator uses a horizontal or vertical milling drum (width: 0.3–1.5 meters) to grind materials. Key components include:

• Milling Drum: Fitted with replaceable carbide or polycrystalline diamond (PCD) cutters for abrasive resistance.
• Depth Control System: Hydraulic cylinders adjust the drum’s penetration depth (0–30 cm) for precise layer removal.
• Speed Regulation: Variable hydraulic flow controls drum rotation (1,000–3,000 RPM) to match material hardness (asphalt, concrete, or frozen ground).
• Dust Suppression: Optional water spray nozzles minimize airborne particles during operation.
  Operators control all functions via the excavator’s cab joysticks, enabling real-time adjustments for optimal results.

Key Advantages

• Precision Depth Control: Mill layers as thin as 5 mm or as thick as 30 cm with ±2 mm accuracy, preserving underlying structures.
• Efficient Material Removal: Processes 10–50 m²/hour (depending on material), 3–5x faster than manual jackhammers.
• Multifunctional Versatility: Swaps between milling, trenching, and demolition tasks by replacing the drum with other attachments.
• Cost-Effective: Converts existing excavators into milling machines, avoiding investment in standalone equipment.
• Accessibility: Navigates tight spaces (alleys, bridge decks, pipeline trenches) where large milling pavers cannot operate.
• Durable Construction: Hardox® 450 steel drum housing, sealed hydraulic motors, and heat-treated cutters withstand abrasive wear.

Technical Highlights

• Milling Width: 300–1,500 mm (12–59 inches, model-dependent for narrow/wide areas)
• Milling Depth: 0–300 mm (0–12 inches, hydraulic adjustment for layer thickness)
• Drum Speed: 1,000–3,000 RPM (variable for asphalt/concrete/frozen ground)
• Compatible Excavators: 5–40 ton models (mini to large excavators)
• Cutting Tools: Carbide-tipped cutters (standard), PCD cutters (for ultra-hard concrete)
• Weight: 800–5,000 kg (balanced for excavator stability)
• Hydraulic Flow: 50–200 L/min (matches excavator’s auxiliary circuit)
• Dust Control: Optional water spray system (reduces airborne particles by 80%)

Applications

• Road Maintenance: Mill damaged asphalt or concrete from highways, city streets, and parking lots for resurfacing.
• Concrete Demolition: Remove old concrete slabs, bridge decks, or foundation toppings in renovation projects.
• Industrial Surface Prep: Smooth rough concrete floors in warehouses, factories, or logistics hubs.
• Airport Runway Repair: Mill worn asphalt or concrete sections to restore runway safety and smoothness.
• Pipeline Trenching: Cut precise trenches in paved surfaces for utility line installation.
• Municipal Projects: Restore sidewalks, bike paths, and public plazas by removing deteriorated surface layers.

From urban road repairs to remote industrial sites, the milling excavator combines the mobility of an excavator with the precision of a milling machine—delivering unmatched efficiency for contractors and municipalities tackling surface restoration challenges.
