Compaction Wheel

Compaction Wheel: The Essential Attachment for Efficient Soil & Material Compaction

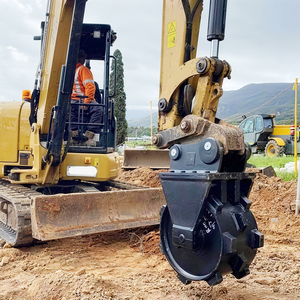

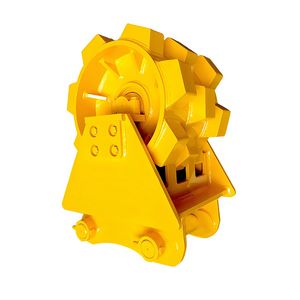

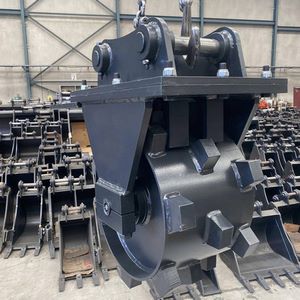

A Compaction Wheel is a hydraulic attachment designed to transform excavators, skid steers, loaders, or compact track loaders into mobile compaction machines. Unlike traditional static rollers, it features a rotating wheel with protruding elements (spikes, padfeet, or smooth pads) that apply dynamic pressure to granular materials like soil, gravel, sand, and asphalt. This design excels in compacting cohesive and non-cohesive soils, stabilizing road bases, and reinforcing trench backfill—all while accessing tight spaces where large rollers cannot operate. It is a go-to solution for contractors and municipalities prioritizing precision, efficiency, and versatility in compaction tasks.

How It Works

Powered by the host machine’s hydraulic system, the compaction wheel rotates at variable speeds (50–300 RPM) to press and knead materials. Key components include:

• Wheel Design: Available in three configurations:
  • Spiked Rollers: Sharp steel spikes penetrate and break up clods in cohesive soils (clay, silt).

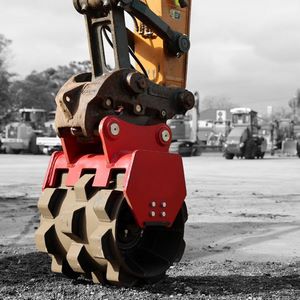

  • Padfoot Rollers: Broad, rectangular pads apply concentrated pressure for deep compaction of gravel or road base.
  • Smooth Rollers: Flat surfaces ensure uniform finish on asphalt or finished surfaces.
• Hydraulic Adjustment: Cylinders control wheel tilt (±10°–20°) and penetration depth (0–20 cm) for targeted compaction.
• Optional Vibration: Integrated vibratory motors enhance density by reducing air gaps (ideal for loose soils).
  Operators manage all functions via the host machine’s cab, enabling real-time adjustments for material type and project requirements.

Key Advantages

• Precision Compaction: Targets specific areas (trenches, slopes, foundations) with adjustable depth and pressure—prevents over/under-compaction.
• Versatile Material Handling: Spikes for clay, padfeet for gravel, smooth for asphalt; adapts to diverse projects.
• Space Efficiency: Fits 2–40 ton excavators, 1–30 ton skid steers, or compact loaders—navigates alleys, bridge abutments, and tight job sites.
• Enhanced Stability: Low ground pressure (compared to static rollers) protects delicate substrates (e.g., newly laid pipes).
• Durable Construction: Hardox® 450 steel wheel hubs, tungsten carbide-tipped spikes, and sealed bearings resist abrasion.
• Cost-Effective: Converts existing equipment into compaction tools, eliminating rental/ownership of standalone rollers.

Technical Highlights

• Wheel Width: 600–2,000 mm (24–79 inches, model-dependent for narrow/wide paths)
• Wheel Diameter: 800–1,500 mm (31–59 inches, balances compaction force and clearance)
• Element Type: Spiked (12–24 spikes), padfoot (8–16 pads), or smooth (solid steel)
• Compatible Machines: 2–40 ton excavators, 1–30 ton skid steers, compact track loaders (25–200 HP)
• Compaction Depth: 0–200 mm (0–8 inches, hydraulic adjustment)
• Rotation Speed: 50–300 RPM (variable for soil density/material type)
• Weight: 500–4,000 kg (balanced for host machine stability)
• Hydraulic Flow: 30–150 L/min (matches standard construction equipment systems)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)

Applications

• Construction Foundations: Compact soil under footings, slabs, and retaining walls to prevent settlement.
• Road & Pavement Projects: Stabilize subgrades, base layers, and asphalt shoulders for highways, driveways, and bike paths.

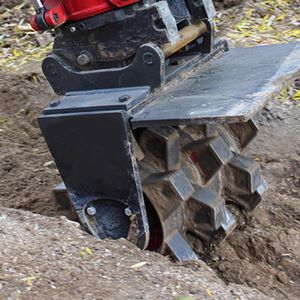

• Trench Backfill: Reinforce soil around pipes, cables, and drainage systems to avoid future shifting.
• Airport Runways: Compact runway subgrades and shoulder materials for aircraft safety.
• Landscaping: Stabilize gravel pathways, garden beds, and erosion-prone slopes.
• Agriculture: Prepare seedbeds, compact silage pits, or reinforce farmyard surfaces.
• Municipal Infrastructure: Restore sidewalks, park trails, and utility access points with durable compaction.

From urban road repairs to remote agricultural sites, the compaction wheel delivers unmatched flexibility and precision—making it indispensable for achieving stable, long-lasting surfaces across diverse industries.
