Wood Grapple: The Rugged Attachment for Efficient Timber Handling

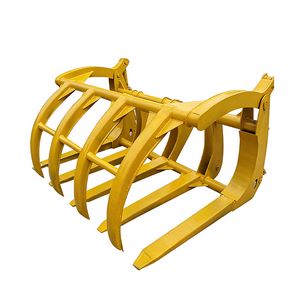

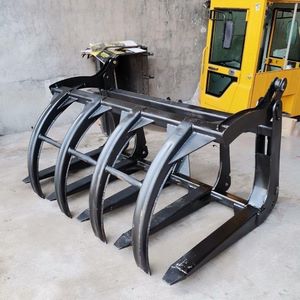

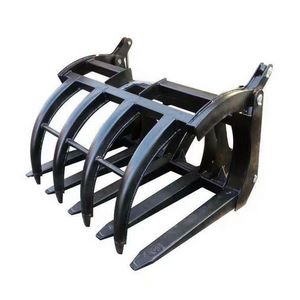

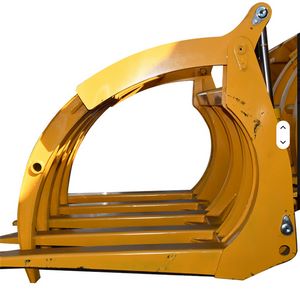

A Wood Grapple (or log grapple/timber grapple) is a heavy-duty hydraulic or mechanical attachment designed for forklifts, wheel loaders, excavators, or telehandlers to securely grip, lift, and transport irregularly shaped timber—including logs, tree limbs, roundwood, and stacked lumber. By replacing manual lifting or unstable forks, it minimizes roll/spill risks, accelerates workflows, and enhances safety in forestry, construction, sawmills, and landscape maintenance. Available in single/double-jaw configurations and hydraulic (high-force) or mechanical (light-duty) variants, wood grapples prioritize durability, adaptability, and compliance with global safety standards (OSHA, CE, EN 474).

How It Works

Wood grapples use multi-jaw arms or claws to apply even pressure around timber, ensuring a firm grip without damaging bark or wood fibers. Key mechanisms include:

• Hydraulic Models: Powered by the host machine’s hydraulic system, with dual cylinders driving 2–4 steel claws (or rubber-lined jaws) for precise clamping force (1–10 tons). Features 360° rotation (via slewing ring) for easy loading/unloading and adjustable jaw openings (200–1,200 mm) to fit logs of varying diameters (100–800 mm).
• Mechanical Models: Lever- or spring-loaded claws with non-slip rubber/PU pads; manually adjusted for log size. Ideal for light-duty tasks (branches, small logs ≤1 ton).
• Gripping System: Curved or serrated claws prevent timber slippage; some models include replaceable wear pads for extended life.
• Mounting: Attaches via quick couplers to 1–20 ton machines (class I–V forklifts, wheel loaders, excavators) with load backrests for stability.
• Control: Operators adjust grip and rotation via in-cab joysticks; digital load indicators (optional) monitor clamping force.

Key Advantages

• Safety First: Eliminates manual timber handling (roll hazards, splinters); secure grip reduces accident risks (OSHA 1910.266 compliant).
• Efficiency Boost: Lifts 1–4 logs per trip (vs. single logs with forks); 360° rotation speeds up loading trucks/racks.
• Versatile Timber Handling: Adapts to logs (round/square), branches, pulpwood, or pre-cut lumber; adjustable jaws fit diameters 100–800 mm.
• Durability: Hardox® 500 steel frame, heat-treated claws, and corrosion-resistant coatings withstand forest debris, moisture, and abrasion.
• Low Maintenance: Sealed hydraulic cylinders and modular claw design simplify repairs; minimal lubrication needed.
• Compliance: Meets CE, OSHA 1910.266 (forestry), and EN 474 (earth-moving machinery) standards; explosion-proof models for fire-prone areas.

Technical Highlights

• Load Capacity: 0.5–10 tons (hydraulic models); 0.2–2 tons (mechanical models)
• Log Diameter Range: 100–800 mm (4–31 inches, adjustable jaw openings)
• Jaw Type: Steel claws (heavy-duty), rubber-lined PU pads (delicate timber), serrated edges (slippery logs)
• Compatible Machines: 1–20 ton forklifts, wheel loaders (2–15 ton), excavators (5–50 ton), telehandlers (3–8 ton reach)
• Material: Hardox® 500 steel frame, replaceable wear pads (polyurethane/rubber), galvanized hydraulic hoses
• Rotation: Optional 360° continuous rotation (hydraulic models); fixed (mechanical models)
• Weight: 150–1,200 kg (331–2,646 lbs, balanced for host machine stability)
• Hydraulic Flow: 30–100 L/min (matches standard auxiliary circuits)
• Temperature Range: -40°C to 60°C (-40°F to 140°F, arctic/desert compatible)
• Certifications: CE, OSHA 1910.266, EN 474, ISO 21873
• Features: Quick coupler mount, overload sensor, emergency stop, LED load indicator

Applications

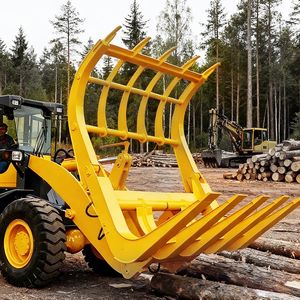

• Forestry & Logging: Harvest and transport felled logs from cutting sites to trucks/depots.
• Sawmills & Wood Processing: Load/unload logs for milling; stack cut lumber.
• Construction: Move timber formwork, scaffolding planks, or landscape logs.
• Landscape Maintenance: Clear fallen branches/storm debris; transport firewood.
• Mining/Quarrying: Handle timber supports or pit props in underground operations.
• Recycling/Yard Waste: Collect and compress tree trimmings for disposal.

From dense forests to bustling sawmills, wood grapples transform heavy timber handling into a controlled, efficient process—protecting workers, reducing downtime, and maximizing resource utilization. Their rugged design and adaptability to harsh outdoor environments make them indispensable for any industry dependent on timber logistics.
