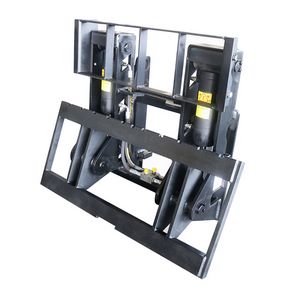

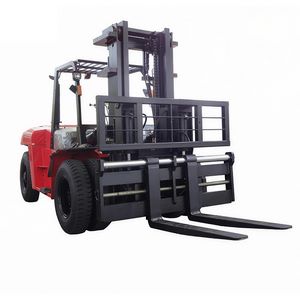

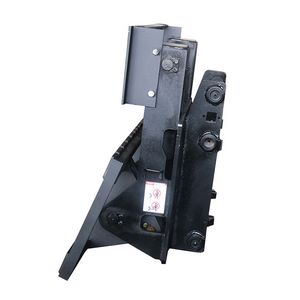

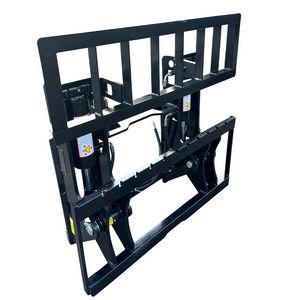

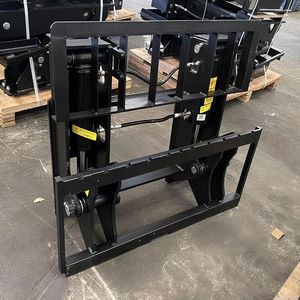

Inclinable fork assembly

Inclinable Fork Assembly: The Adaptive Solution for Stable Load Handling

An Inclinable Fork Assembly (or tilting fork assembly) is a specialized attachment for forklifts, telehandlers, or material handling equipment that enables adjustable fork angles (forward/backward tilt) to optimize load stability, alignment, and accessibility. Unlike fixed forks, it adapts to uneven terrain, irregularly shaped loads (e.g., tilted pallets, bundles), and challenging stacking scenarios—reducing spillage risks, improving operator control, and boosting productivity in warehouses, construction sites, agriculture, and logistics.

How It Works

The assembly integrates with the host machine’s mast and hydraulic system to enable precise angle adjustment:

• Tilting Mechanism: Hydraulic cylinders or mechanical linkages pivot the fork tines relative to the carriage, allowing tilt angles typically ranging from ±15° to ±30° (model-dependent).
• Angle Control: Operators adjust tilt via in-cab joysticks or foot pedals, with some models featuring digital angle indicators for accuracy.
• Locking System: Secure locking pins or hydraulic brakes hold the desired angle during transport, preventing unintended shifts.
• Compatibility: Mounts to standard forklift carriages (class I–V) via quick couplers, fitting 1–10 ton electric, diesel, or rough terrain forklifts.
• Fork Tines: High-strength steel tines (flat or pallet-style) with optional wear pads or non-slip coatings for load grip.

Key Advantages

• Enhanced Stability: Tilts loads to match surface slopes (e.g., ramps) or pallet angles, minimizing slippage and tip-overs.
• Improved Accessibility: Forward tilt reaches into deep racks; backward tilt aligns loads with stack heights, reducing repositioning.
• Versatile Load Handling: Secures irregular items (pipes, drums, bundled materials) that fixed forks struggle with.
• Safety Compliance: Reduces operator strain and accident risks (OSHA/EN 1459 compliant); some models include overload sensors.
• Durability: Forged steel tines, corrosion-resistant coatings, and sealed hydraulic components withstand daily abuse.
• Easy Installation: Quick coupler design enables tool-free swapping with standard forks in minutes.

Technical Highlights

• Tilt Angle Range: ±15° to ±30° (adjustable via hydraulic controls)
• Fork Tine Length: 1,000–2,400 mm (39–94 inches, fits standard pallet widths)
• Load Capacity: 1–5 tons (model-dependent for light/heavy loads)
• Compatible Machines: 1–10 ton forklifts (electric, diesel, LPG), telehandlers (2–4 ton), rough terrain forklifts
• Material: High-tensile alloy steel tines (Hardox® 400), galvanized steel carriage, reinforced hydraulic hoses
• Tilt Speed: 2–5 seconds per 15° adjustment (hydraulic models)
• Weight: 150–600 kg (331–1,323 lbs, balanced for forklift stability)
• Hydraulic Flow: 15–50 L/min (matches standard forklift auxiliary circuits)
• Certifications: CE, OSHA 1910.178, EN 1459, ISO 3691

Applications

• Warehousing: Retrieve/stack pallets in high-density racks; handle tilted or damaged pallets.
• Construction: Transport pipes, lumber, or roofing materials on uneven ground.
• Agriculture: Load/unload hay bales, grain bags, or equipment on sloped farms.
• Logistics: Align loads with delivery trucks or shipping containers.
• Manufacturing: Feed irregularly shaped components into production lines.
• Retail: Stock shelves with bulky items (appliances, furniture) in tight spaces.

From busy distribution centers to rugged construction sites, the inclinable fork assembly transforms standard forklifts into adaptive material handlers—ensuring loads stay secure, operations run smoothly, and productivity soars. Its blend of precision, durability, and ease of use makes it a game-changer for industries demanding flexible load management.
