Rotators: The Precision Attachment for Controlled Load Rotation

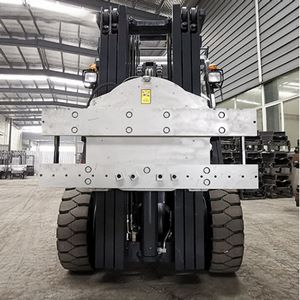

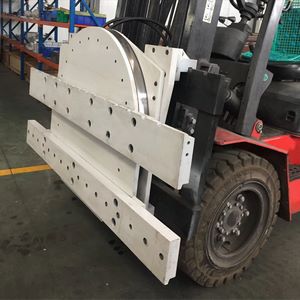

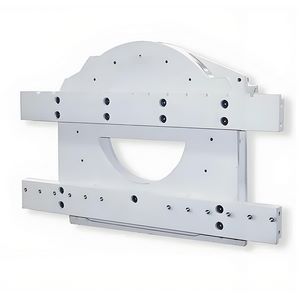

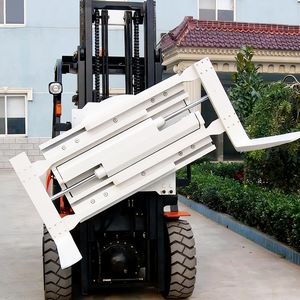

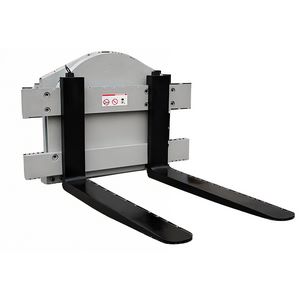

ARotator (or cargo rotator) is a hydraulic or mechanical attachment for forklifts, excavators, telehandlers, or material handling equipment designed to rotate loads (barrels, drums, pallets, totes, or bulk materials) by 180° or 360°. It eliminates manual repositioning, enhances safety, and streamlines workflows in industries requiring precise load orientation—from flipping drums for emptying to aligning pallets for stacking. Available in hydraulic (high-force) and mechanical (light-duty) variants, rotators prioritize accuracy, durability, and compliance with global safety standards (OSHA, CE, EN 1757).

How It Works

Rotators use powered mechanisms to grip and rotate loads around a central axis, with key components including:

• Rotation Mechanism: Hydraulic cylinders (for heavy loads) or gear-driven systems (for light loads) drive a rotating frame, enabling 180° (flip), 360° (full rotation), or variable-angle positioning (e.g., 90° increments).
• Gripping System: Adjustable arms, clamps, or forks secure loads (drums, pallets, buckets) via rubber/PU pads (non-slip) or hardened steel jaws (heavy-duty). Some models feature automatic centering for irregular shapes.
• Control: Operators adjust rotation via in-cab joysticks, with digital angle indicators (optional) for precision. Hydraulic models offer variable speed control; mechanical models use lever-operated locks.
• Mounting: Attaches to standard forklift carriages (class I–V) or excavator arms via quick couplers, compatible with 1–10 ton machines (electric, diesel, LPG).
• Safety Features: Overload sensors, emergency stop buttons, and anti-slip pads prevent load drop or damage during rotation.

Key Advantages

• Precision Orientation: Rotate loads to exact angles (e.g., 45°, 90°, 180°) for filling, stacking, or assembly—reduces manual adjustments by 80%.
• Enhanced Safety: Eliminates worker entry into load zones; secure gripping prevents spills/drops (critical for hazardous materials like chemicals or fuels).
• Versatile Load Handling: Handles drums (30–210L), pallets (800×1,200mm to 1,000×1,500mm), buckets, totes, or bulk bags; optional sleeves adapt to irregular shapes (pipes, beams).
• Efficiency Boost: Flips drums for emptying, aligns pallets for racking, or rotates containers for access—cuts task time by 50% vs. manual methods.
• Durability: Hardox® 450 steel frame, sealed hydraulic cylinders, and replaceable wear pads withstand abrasive/chemical environments (mining, chemical plants).
• Compliance: Meets OSHA 1910.178, CE, and EN 1757 standards; explosion-proof models available for flammable areas.

Technical Highlights

• Rotation Angle: 180° (flip), 360° (continuous), or variable (0–360° with stops)
• Load Capacity: 0.5–5 tons (model-dependent for light/heavy loads)
• Compatible Machines: 1–10 ton forklifts, 5–50 ton excavators, telehandlers (2–4 ton reach)
• Material: Hardox® 450 steel frame, food-grade rubber/PU pads (sanitary models), galvanized hydraulic components
• Rotation Speed: 2–8 seconds per 180° (hydraulic models); 5–15 seconds (mechanical models)
• Weight: 120–800 kg (265–1,764 lbs, balanced for host machine stability)
• Hydraulic Flow: 25–80 L/min (matches standard auxiliary circuits)
• Temperature Range: -30°C to 50°C (-22°F to 122°F, cold storage/desert compatible)
• Features: Quick coupler mount, angle lock, overload sensor, LED load indicator

Applications

• Chemical/Pharma: Flip drums of acids/solvents for emptying; rotate totes of powders for mixing.
• Warehousing/Logistics: Align pallets for racking; rotate containers for access to side doors.
• Construction: Rotate buckets of concrete/debris for precise dumping; flip steel beams for welding.
• Manufacturing: Orient components on pallets for assembly lines; rotate molds for coating.
• Food/Beverage: Rotate barrels of syrup/edible oil (sanitary models); flip crates for inspection.
• Waste Management: Empty bulk bags of recyclables; rotate bins for compacting.

From hazardous chemical plants to high-volume warehouses, rotators transform static loads into dynamic assets—enabling precise positioning, reducing labor risks, and maximizing operational efficiency. Their adaptability to diverse loads and strict safety standards makes them indispensable for industries demanding controlled rotation.
