Roll Clamps

Roll Clamps: The Specialized Attachment for Secure Cylindrical Roll Handling

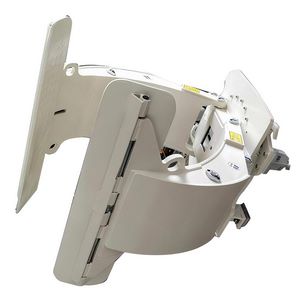

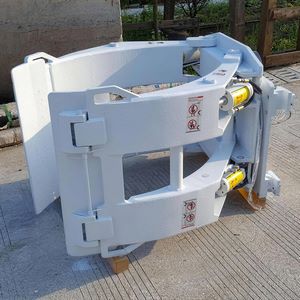

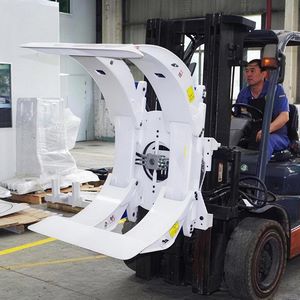

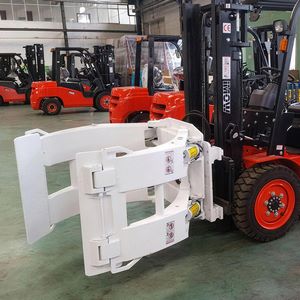

A Roll Clamp (or cylindrical load clamp) is a precision attachment for forklifts, telehandlers, or material handling equipment designed to securely grip, lift, and transport cylindrical rolls—including paper rolls, steel coils, plastic film rolls, textile rolls, and aluminum coils. By applying uniform pressure around the roll’s circumference, it eliminates rolling/slipping risks, prevents material damage (e.g., creasing paper, scratching steel), and streamlines workflows in industries reliant on roll-based logistics. Available in single/double configurations and hydraulic (high-force) or mechanical (light-duty) variants, roll clamps prioritize stability, versatility, and compliance with global safety standards (OSHA, CE, EN 1757).

How It Works

Roll clamps use adjustable arms or jaws to engage rolls of varying diameters, with mechanisms tailored to load weight and material sensitivity:

• Hydraulic Models: Powered by the host machine’s hydraulic system, with dual cylinders driving 2–4 curved jaws (rubber/PU-lined or serrated steel) for precise clamping force (1–10 tons). Features 360° rotation (via slewing ring) for easy alignment with processing equipment (printing presses, slitters) and adjustable jaw openings (200–2,000 mm) to fit rolls from 300–1,800 mm in diameter.
• Mechanical Models: Lever- or spring-loaded arms with non-slip rubber pads; manually adjusted for roll size. Ideal for light-duty tasks (small paper rolls, fabric bolts ≤2 tons).
• Gripping System: Soft rubber/PU pads protect delicate surfaces (paper, film); serrated steel jaws enhance traction for slippery materials (wet steel coils). Some models include automatic centering for off-balance rolls.
• Mounting: Attaches via quick couplers to 1–20 ton machines (class I–V forklifts, telehandlers, industrial trucks) with integrated load backrests for stability.
• Control: Operators adjust grip and rotation via in-cab joysticks; digital angle indicators (optional) ensure precise positioning (e.g., 90° for stacking).

Key Advantages

• Damage Prevention: Uniform pressure avoids creasing, scratching, or deformation—critical for high-value materials (premium paper, coated steel).
• Anti-Roll/Slippage: Secure grip eliminates roll movement during transport/storage, reducing workplace accidents (OSHA 1910.178 compliant).
• Versatile Roll Handling: Adapts to paper (500–1,500 kg), steel coils (1–10 tons), plastic film (200–1,000 mm diameter), and textile rolls (up to 3 meters long).
• Efficient Workflow: 360° rotation simplifies loading/unloading presses, slitters, or racks; lifts 1–2 rolls per trip (vs. single rolls with forks).
• Durability: Hardox® 450 steel frame, wear-resistant pads, and sealed hydraulics withstand abrasive/chemical environments (paper mills, steel plants).
• Compliance: Meets OSHA 1910.178, CE, and EN 1757 standards; explosion-proof models available for flammable material handling.

Technical Highlights

• Load Capacity: 0.5–10 tons (hydraulic models); 0.2–3 tons (mechanical models)
• Roll Diameter Range: 300–1,800 mm (12–71 inches, adjustable jaw openings)
• Jaw Type: Rubber/PU-lined (delicate materials), serrated steel (slippery coils), V-groove (textile rolls)
• Compatible Machines: 1–20 ton forklifts, telehandlers (2–8 ton reach), industrial trucks
• Material: Hardox® 450 steel frame, food-grade rubber pads (sanitary models), galvanized hydraulic components
• Rotation: Optional 360° continuous rotation (hydraulic models); fixed (mechanical models)
• Weight: 180–1,500 kg (397–3,307 lbs, balanced for host machine stability)
• Hydraulic Flow: 35–120 L/min (matches standard auxiliary circuits)
• Temperature Range: -30°C to 60°C (-22°F to 140°F, cold storage/steel mill compatible)
• Certifications: CE, OSHA 1910.178, EN 1757, ISO 13849
• Features: Quick coupler mount, overload sensor, emergency stop, LED load indicator, vertical/horizontal stacking mode

Applications

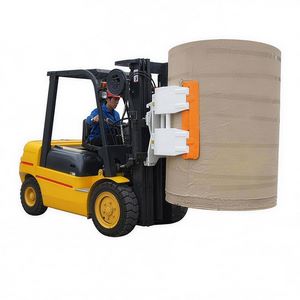

• Paper & Pulp Mills: Transport large paper rolls (newsprint, cardboard) from rewinders to storage/transport.
• Steel Mills/Coil Processing: Handle steel/ aluminum coils for slitting, annealing, or shipping.
• Printing & Converting: Rotate paper/film rolls for press alignment; load/unload slitters.
• Packaging: Move plastic film/foil rolls for bag-making or wrapping machines.
• Textile Industry: Transport fabric rolls to looms or cutting tables.
• Warehousing/Logistics: Stack rolls in high-density racks; load/unload trucks without shifting.
• Recycling: Collect and compress paper/plastic rolls for reprocessing.

From delicate paper mills to heavy steel plants, roll clamps transform cylindrical load handling into a controlled, damage-free process—enhancing safety, reducing material waste, and boosting productivity. Their adaptability to diverse roll types and harsh industrial environments makes them indispensable for any operation relying on roll-based materials.
