Electromagnetic Suction Cup: The High-Power Magnetic Attachment for Efficient Ferromagnetic Material Handling

An Electromagnetic Suction Cup (or electromagnet suction cup/industrial electromagnetic gripper) is a heavy-duty magnetic attachment that uses electromagnetic force to securely grip, lift, and transport ferromagnetic materials—including steel plates, pipes, bars, castings, and scrap metal. By generating a powerful magnetic field when energized (via electrical current) and releasing the load when de-energized, it eliminates the need for slings, chains, or mechanical clamps, streamlining workflows in steel mills, manufacturing, logistics, and recycling. Designed for high-load capacity (5–50 tons), rapid response, and safety compliance (OSHA, CE, EN 13155), electromagnetic suction cups prioritize efficiency, damage-free handling, and adaptability to harsh industrial environments.

How It Works

Electromagnetic suction cups rely on electromagnetism to create temporary magnetic adhesion, with designs optimized for load stability and control:

• Magnetic Field Generation: A coil of conductive wire (copper/aluminum) wrapped around a ferromagnetic core generates a strong magnetic field when energized by a power source (DC voltage, typically 12–220V). This field magnetizes the contact surface (e.g., steel plate), creating suction-like adhesion.
• Load Engagement: The suction cup’s flat or contoured surface (with wear-resistant pads) makes full contact with the material, ensuring uniform magnetic force distribution. For irregular shapes (pipes, angles), custom pole shoes focus the field for maximum grip.
• Release Mechanism: De-energizing the coil collapses the magnetic field instantly, releasing the load without residual magnetism (critical for precise placement).
• Control Systems: Integrated controllers manage power input, monitor load weight (via load cells), and trigger alarms for overloads or low battery (portable models). Automated versions sync with PLCs for robotic integration.

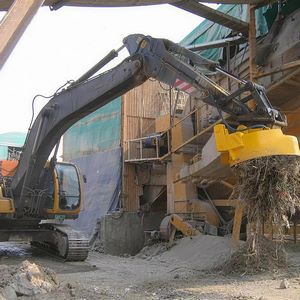

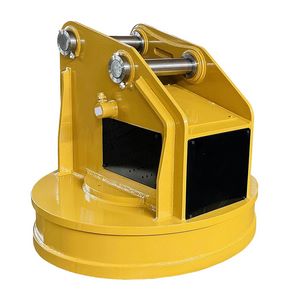

• Mounting: Attaches to cranes, forklifts, gantry systems, or robotic arms via bolt-on brackets; some models feature quick couplers for rapid deployment.

Key Advantages

• High Efficiency: Lifts 10–20x faster than slings/chains; no manual rigging required, reducing labor costs by 30–50%.
• Damage-Free Handling: Uniform magnetic force prevents scratches or deformation (vs. mechanical clamps), ideal for finished steel products.
• Massive Load Capacity: Handles 5–50 tons per unit (custom models up to 100 tons), suitable for heavy steel plates or structural components.
• Instant Release: De-energizes in <0.5 seconds for precise placement in assembly lines or stacking.
• Safety Compliance: Meets OSHA 1910.179 (crane operations) and EN 13155 (lifting magnets); overload sensors prevent accidental drops.
• Energy Efficiency: Modern models use pulsed DC power to reduce energy consumption by 20–30% vs. traditional designs.

Technical Highlights

• Load Capacity: 5–50 tons (standard); 1–100 tons (custom heavy-duty models)
• Applicable Material: Ferromagnetic metals (steel, iron, nickel alloys); thickness 3–50 mm (adjustable pole shoes for thin sheets)
• Magnetic Field Strength: 1,000–3,000 Gauss (surface flux density)
• Power Supply: DC 12–220V (industrial) or rechargeable batteries (portable models, 24V)
• Response Time: <0.5 seconds (engage/release)
• Material: Carbon steel frame, copper coils, hardened steel pole shoes, epoxy resin insulation
• Temperature Range: -20°C to 120°C (-4°F to 248°F; high-temp models up to 300°C/572°F for foundries)
• Certifications: CE, OSHA 1910.179, EN 13155, ISO 4309
• Features: Overload protection, load monitoring display, waterproof seals (IP65), anti-vibration pads, remote control (wireless option)

Applications

• Steel Mills: Lift hot/cold steel plates, coils, and billets from rolling mills to storage.
• Manufacturing: Transport automotive body panels, machinery components, or structural steel for assembly.
• Logistics/Warehousing: Stack steel sheets in high-density storage; load/unload trucks/trains.

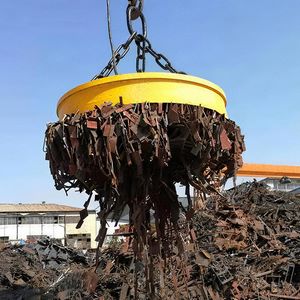

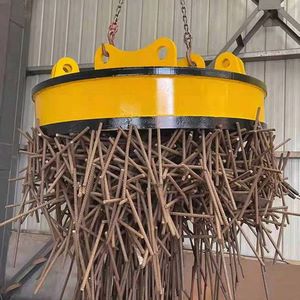

• Recycling: Collect scrap metal (cars, appliances) for sorting and melting.
• Shipbuilding: Position steel plates for hull construction; lift heavy engine components.
• Foundries: Move cast iron/steel ingots from molds to cooling beds.
• Robotics: Integrate with robotic arms for automated part picking in CNC machining.

From massive steel mill operations to precision robotic assembly, electromagnetic suction cups redefine heavy material handling—combining raw power with pinpoint control. Their ability to lift, move, and release ferromagnetic loads safely and efficiently makes them indispensable for industries where speed, safety, and zero damage are non-negotiable.
