Block Clamps

Block Clamps: The Robust Attachment for Secure Masonry & Concrete Block Handling

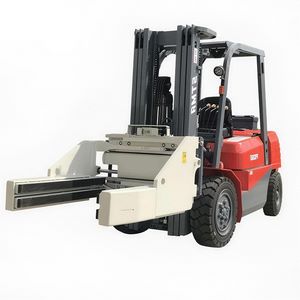

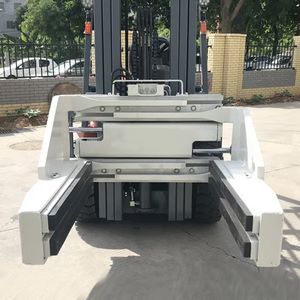

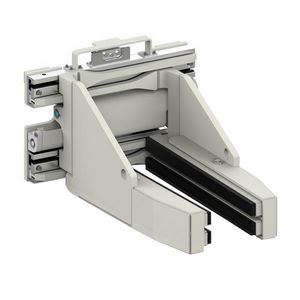

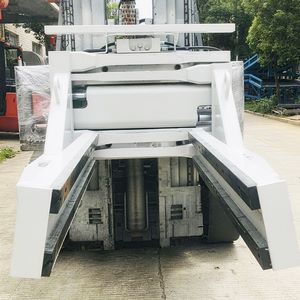

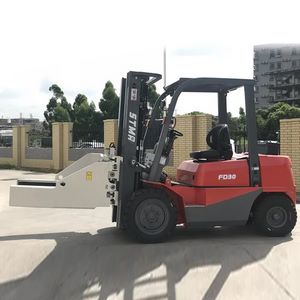

A Block Clamp (or masonry block gripper/concrete block handler) is a heavy-duty hydraulic or mechanical attachment for forklifts, wheel loaders, excavators, or telehandlers designed to securely grip, lift, and transport solid blocks—including concrete blocks, stone blocks, bricks, and precast masonry units. By applying uniform pressure around irregular or flat block surfaces, it eliminates sliding, tipping, or breakage risks, streamlining workflows in construction, quarrying, precast manufacturing, and landscaping. Available in single/double-jaw configurations and hydraulic (high-force) or mechanical (light-duty) variants, block clamps prioritize strength, adaptability, and compliance with global safety standards (OSHA, CE, EN 474).

How It Works

Block clamps use reinforced arms or jaws to engage blocks of varying shapes (cubes, rectangles, cylinders) and weights, with mechanisms optimized for load stability:

• Hydraulic Models: Powered by the host machine’s hydraulic system, with dual cylinders driving 2–4 steel jaws (rubber-lined or serrated) for precise clamping force (1–8 tons). Features 90°/180° rotation (via slewing ring) for easy alignment with stacking areas or machinery, and adjustable jaw openings (200–1,500 mm) to fit blocks 150–1,200 mm wide.
• Mechanical Models: Lever- or spring-loaded arms with non-slip rubber/PU pads; manually adjusted for block size. Ideal for light-duty tasks (small bricks, decorative stones ≤2 tons).
• Gripping System: Curved or flat jaws distribute pressure evenly to prevent chipping; rubber pads protect delicate finishes (e.g., polished stone), while serrated edges enhance traction for rough surfaces (concrete blocks). Some models include automatic centering for off-balance loads.
• Mounting: Attaches via quick couplers to 1–20 ton machines (class I–V forklifts, wheel loaders, excavators) with integrated load backrests to stabilize tall block stacks.
• Control: Operators adjust grip and rotation via in-cab joysticks; digital load indicators (optional) monitor clamping force to avoid over-tightening.

Key Advantages

• Slip/Tip Prevention: Secure grip eliminates block movement during transport/storage, reducing workplace accidents (OSHA 1910.178 compliant).
• Damage Reduction: Even pressure avoids chipping or cracking—critical for high-value materials (decorative stone, architectural blocks).
• Palletless Efficiency: Eliminates pallet costs and return logistics; handles blocks directly from production lines or stockpiles.
• Versatile Block Handling: Adapts to concrete (300–1,500 kg), stone (1–8 tons), bricks (single/multi-layer stacks), and precast units (up to 2 meters long).
• Durability: Hardox® 500 steel frame, heat-treated jaws, and sealed hydraulics withstand abrasive/impact environments (quarries, construction sites).
• Compliance: Meets OSHA 1910.178, CE, and EN 474 standards; explosion-proof models available for flammable material sites.

Technical Highlights

• Load Capacity: 0.5–8 tons (hydraulic models); 0.2–3 tons (mechanical models)
• Block Size Range: 150–1,200 mm wide, 100–2,000 mm long (adjustable jaw openings)
• Jaw Type: Rubber-lined (delicate stone), serrated steel (rough concrete), V-groove (cylindrical blocks)
• Compatible Machines: 1–20 ton forklifts, wheel loaders (2–15 ton), excavators (5–50 ton), telehandlers (3–8 ton reach)
• Material: Hardox® 500 steel frame, replaceable wear pads (polyurethane/rubber), galvanized hydraulic hoses
• Rotation: Optional 90°/180° (hydraulic models); fixed (mechanical models)
• Weight: 200–1,800 kg (441–3,968 lbs, balanced for host machine stability)
• Hydraulic Flow: 40–150 L/min (matches standard auxiliary circuits)
• Temperature Range: -40°C to 60°C (-40°F to 140°F, arctic/desert compatible)
• Certifications: CE, OSHA 1910.178, EN 474, ISO 21873
• Features: Quick coupler mount, overload sensor, emergency stop, LED load indicator, vertical/horizontal stacking mode

Applications

• Construction Sites: Transport concrete blocks for walls, foundations, or retaining structures.
• Quarries/Mining: Handle rough stone blocks for aggregate processing or landscaping.
• Precast Concrete Yards: Load/unload manufactured blocks (pavers, curbstones) onto trucks.
• Landscaping: Move decorative stone/brick for garden beds, patios, or retaining walls.
• Brickyards: Stack/shuffle bricks during drying or packaging.
• Warehousing: Store palletless block inventories in high-density racking.
• Demolition: Collect and transport reusable concrete/stone blocks for recycling.

From busy construction zones to precision precast facilities, block clamps transform bulky masonry handling into a controlled, efficient process—protecting workers, minimizing material waste, and accelerating project timelines. Their rugged design and adaptability to harsh outdoor environments make them indispensable for any industry reliant on solid block logistics.
