4-in-1 bucket
- Fast, secure shipping with global reach.
- Quick delivery, ready to work on arrival.
- 086-18305371238
- lina@cnznzb.com
$2000 ~ $50000
Contact us for accurate pricing
- Parameter
- Introduction
| Parameter | Unit | 4IN1-S03 (Small Compact) | 4IN1-M06 (Medium General) | 4IN1-L10 (Large Heavy-Duty) | 4IN1-HX12 (Reinforced Rock) | 4IN1-MF08 (Multi-Function) |
| Model | - | 4IN1-S03 | 4IN1-M06 | 4IN1-L10 | 4IN1-HX12 | 4IN1-MF08 |
| Application | - | Light digging loading leveling | General excavation backfilling sorting | Heavy earthmoving rock handling | Reinforced rock concrete crushing | Multi-scene digging gripping sweeping |
| Rated Load Capacity | ton (t) | 1.2 t | 3 t | 8 t | 5 t | 2.5 t |
| Bucket Capacity | m³ | 0.15 m³ | 0.3 m³ | 0.6 m³ | 0.4 m³ | 0.25 m³ |
| Max Opening Width | mm | 800–1600 mm | 1200–2400 mm | 1800–3600 mm | 1400–2800 mm | 1000–2000 mm |
| Operating Pressure | MPa | 16 MPa | 18 MPa | 22 MPa | 20 MPa | 17 MPa |
| Gripping Force | kN | 60 kN | 120 kN | 250 kN | 180 kN | 90 kN |
| Compatible Excavator Weight | ton (t) | 2–4 t | 5–8 t | 15–25 t | 8–12 t | 3–6 t |
| Attachment Weight | kg | 280 kg | 650 kg | 1.8 t | 1.2 t | 420 kg |

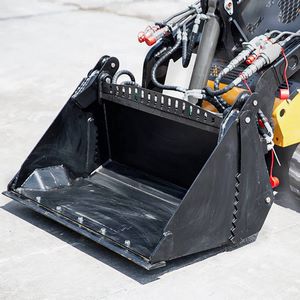

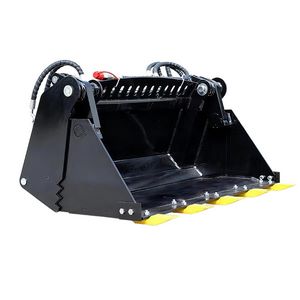

4-in-1 Bucket: The Ultimate Multi-Purpose Attachment for Versatile Material Handling
A 4-in-1 Bucket (or multi-purpose/combination bucket) is a heavy-duty hydraulic attachment designed for skid steers, wheel loaders, compact tool carriers (CTCs), and mini excavators. It integrates four core functions—digging, grading, raking, and clamping/gripping—into a single unit, eliminating the need to switch between specialized buckets. By using hydraulic cylinders to adjust the bucket’s shape (e.g., opening/closing the clamshell-style front or tilting the blade), it adapts to diverse tasks like excavation, land leveling, debris cleanup, and bulk material transport. Built for durability and efficiency, 4-in-1 buckets are staples in construction, landscaping, agriculture, and municipal work, prioritizing adaptability, reduced downtime, and compliance with global safety standards (OSHA, CE, EN 474).
How It Works
The 4-in-1 bucket’s versatility stems from its hydraulic actuation system, which reconfigures the bucket for different tasks:
- Digging Mode: Closed clamshell design with sharp cutting edge (replaceable teeth optional) for penetrating soil, gravel, or loose debris.
- Grading Mode: Open, flat blade tilted downward to smooth uneven terrain (e.g., driveways, lawns) or spread materials.
- Raking Mode: Partially open jaws with tines to clear rocks, roots, or vegetation from soil.
- Clamping/Gripping Mode: Fully opened jaws with serrated edges to lift/transport bulky items (logs, pipes, scrap metal) or stack materials.
- Hydraulic Control: Operated via in-cab joysticks; dual cylinders adjust jaw angle (0–120°) and tilt (±15°) for precise positioning.
- Mounting: Attaches via quick couplers to 0.5–3 ton machines (skid steers, CTCs, mini loaders) with load backrests for stability.
Key Advantages
- All-in-One Efficiency: Replaces 4+ attachments (digging bucket, grader, rake, clam shell), cutting equipment costs and changeover time by 50%.
- Task Adaptability: Handles excavation (trenches, foundations), grading (site prep, road maintenance), raking (debris clearance), and clamping (bulk materials).
- Reduced Downtime: No need to swap tools mid-project; ideal for small crews or tight deadlines.
- Cost Savings: Lowers attachment inventory, storage, and maintenance expenses.
- Durability: Hardox® 450 steel frame, wear-resistant cutting edges, and sealed hydraulics withstand abrasive/impact environments (construction sites, farms).
- Safety Compliance: Meets OSHA 1910.178 (material handling) and CE/EN 474 standards; overload sensors (optional) prevent damage.
Technical Highlights
- Load Capacity: 0.3–2 tons (varies by bucket width/model)
- Bucket Width: 1,200–2,400 mm (47–94 inches, fits compact to mid-size machines)
- Jaw Opening: 0–1,200 mm (0–47 inches, adjustable via hydraulics)
- Cutting Edge: Replaceable bolt-on teeth (for digging) or smooth blade (for grading); heat-treated steel (HRC 45–50).
- Compatible Machines: 0.5–3 ton skid steers, wheel loaders, compact tool carriers (CTCs), mini excavators.
- Material: Hardox® 450 steel frame, AR400 wear plates, galvanized hydraulic hoses.
- Hydraulic Flow: 20–60 L/min (matches standard auxiliary circuits).
- Weight: 150–600 kg (331–1,323 lbs, balanced for host machine stability).
- Temperature Range: -30°C to 60°C (-22°F to 140°F, cold/hot climate compatible).
- Certifications: CE, OSHA 1910.178, EN 474, ISO 13849.
- Features: Quick coupler mount, overload sensor, emergency stop, LED load indicator, replaceable wear pads.

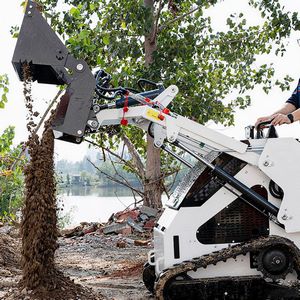

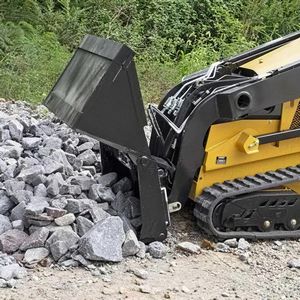

Applications
- Construction: Excavate trenches, grade building pads, clear debris, and transport sand/gravel.
- Landscaping: Level lawns, remove rocks/roots, spread mulch, and move shrubs/logs.
- Agriculture: Rake hay/straw, clean barns, transport feed bales, and grade farm roads.
- Municipal/Public Works: Maintain parks, grade sports fields, clear storm debris, and repair potholes.
- Demolition/Waste Management: Sort scrap metal, collect rubble, and load debris into trucks.
- Utilities: Dig around pipelines, grade trench backfill, and clear utility right-of-ways.
From residential landscaping to heavy construction, the 4-in-1 bucket redefines versatility in material handling—empowering operators to tackle multiple tasks with one attachment. Its rugged design, hydraulic precision, and cost-saving efficiency make it an indispensable tool for any fleet focused on productivity and adaptability.
- Q: Are you a trading company or manufacturer?
- A: We are a factory.
- Q: Can you produce according to the customer’s design?
- A: Yes, we can do customized products.
- Q:How can we guarantee quality?
- A:Always a pre-production sample before mass production; Always final Inspection before shipment;
- Q: What's your delivery time?
- A: Lead time: we have a lot of products and spare parts in stock. On leading time we have big advantages as a manufacturer, usually within 7-15 days after we receive your payment.
- Q: What is your best price?
- A: We are a direct manufacturer, and will give you a competitive price.
