Screening Bucket

Screening Bucket: On-Site Material Separation for Efficient Sorting

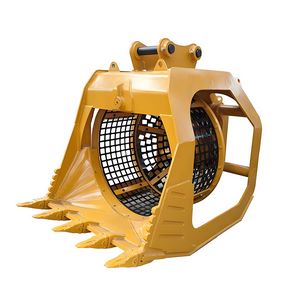

A Screening Bucket is a hydraulic attachment designed to transform excavators, skid steers, or loaders into mobile sorting stations. It separates bulk materials (e.g., soil, sand, gravel, construction debris, mulch) by size using integrated screens or vibrating mesh systems—enabling on-site classification of usable aggregates and removal of fines or contaminants. This innovation eliminates the need for off-site screening plants, slashing costs and accelerating workflows in construction, recycling, and landscaping.

How It Works

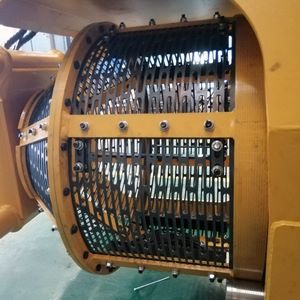

Powered by the host machine’s hydraulic system, the screening bucket uses rotating shafts with mesh screens (or interchangeable screen panels) to shake, sift, and separate materials. Larger particles remain in the bucket, while smaller fines pass through the mesh into a collection tray or conveyor. Advanced models feature adjustable vibration speeds and removable screen panels (e.g., 5mm, 10mm, 20mm mesh) to customize sorting for different material types (e.g., fine sand vs. coarse gravel).

Key Advantages

• On-Site Sorting: Separate materials directly at job sites—avoid hauling mixed debris to external facilities.
• Waste Reduction: Isolate reusable aggregates (e.g., clean gravel for backfill) and discard contaminants (e.g., clay, roots).
• Cost Savings: Cut transportation, disposal, and off-site screening fees by 40–70%.
• Versatility: Handles soil, sand, crushed concrete, compost, mulch, and mining overburden with quick-change screens.
• Eco-Friendly: Promote circular economy by recovering valuable materials from demolition/construction waste.
• Low Maintenance: Self-cleaning screens and durable bearings minimize clogging and upkeep.

Technical Highlights

• Screen Mesh Sizes: 2–50mm (interchangeable panels for fine to coarse sorting)
• Compatibility: Fits 1–45 ton excavators, skid steers, wheel loaders, or mini-excavators
• Processing Capacity: 5–50 m³/hour (material density-dependent)
• Bucket Capacity: 0.15–2.0 m³ (optimized for stability during screening)
• Material: Hardox® 400/500 bucket body, high-tensile steel mesh (abrasion-resistant)
• Weight: 250–4,000 kg (balanced for host machine hydraulic capacity)

Applications

• Construction: Sort excavated soil to remove rocks/debris for backfill; recover aggregates from demolition rubble.
• Landscaping: Screen topsoil to eliminate clumps/roots; separate mulch into uniform grades.
• Recycling: Process construction debris into reusable gravel, sand, or recycled concrete aggregate (RCA).
• Agriculture: Sift compost to remove contaminants; prepare seedbeds by filtering soil.
• Mining/Quarrying: Classify crushed stone by size for market-ready products.

From urban demolition sites to rural farm projects, the screening bucket delivers precision sorting and efficiency—making it indispensable for contractors aiming to maximize material value and minimize waste.
