Pile Driver

Pile Driver – English Introduction

A pile driver is a heavy‑construction machine used to drive piles—long, slender structural elements made of concrete, steel, or timber—into the ground to support foundations for buildings, bridges, piers, retaining walls, and other civil engineering structures. It delivers repeated, high‑impact blows to the pile head, forcing it into the soil or embedding it securely.

How It Works

Pile drivers operate by raising a heavy weight (hammer) and then releasing it to strike the pile shaft. Common driving methods include:

• Drop hammer: Gravity‑powered free fall of a heavy mass.
• Diesel hammer: Uses diesel combustion to drive the ram, combining impact with energy from exploding fuel.
• Hydraulic hammer: Employs hydraulic pistons for rapid, controllable impacts with adjustable energy and frequency.
  Modern pile drivers can be mounted on crawler cranes, excavators, piling rigs, or barges for marine work. Vibratory pile drivers are also available, using high‑frequency vibration to reduce soil resistance instead of impact.

Key Types

• Impact Pile Driver: Traditional drop, diesel, or hydraulic hammers; ideal for dense soils and large-diameter piles.

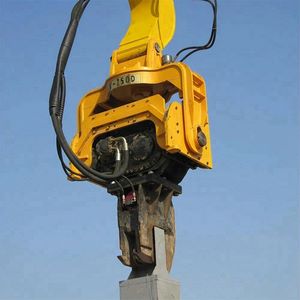

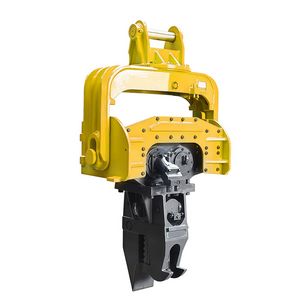

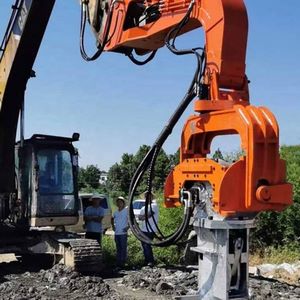

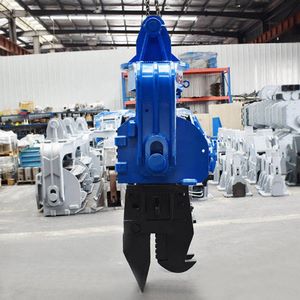

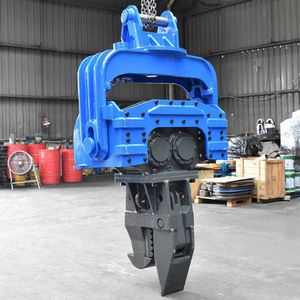

• Vibratory Pile Driver: Uses eccentric weights to create vibration; minimizes noise and suits sensitive environments.
• Hydraulic Pile Driver: Precise energy control, quieter operation, adaptable to various pile materials.
• Diesel Pile Hammer: Self‑contained power source; effective in remote areas without external hydraulics.
• Crane‑Mounted Pile Driver: Attached to crawler or lattice boom crane; provides mobility and high lifting capacity.
• Marine/Vessel‑Mounted Pile Driver: Used for offshore platforms, piers, and bridge foundations over water.

Core Features

• High impact energy: Drives piles quickly in hard or dense soils.
• Adjustable stroke/frequency: Matches pile type, soil condition, and project requirements.
• Noise & vibration control: Especially important in urban or environmentally sensitive zones.
• Mounting flexibility: Compatible with multiple base machines (excavator, crane, barge).
• Automatic pile alignment: Ensures vertical driving and reduces deviation.

Primary Applications

• Foundation construction for high‑rise buildings and industrial facilities
• Bridge pier and abutment installation
• Retaining wall and cofferdam support systems
• Marine structures (piers, jetties, offshore platforms)
• Transmission tower and wind turbine foundation installation
• Sheet piling for excavation support and earth retention

Advantages

• Strong penetration capability: Handles hard strata, boulders, and dense sands.
• Efficiency: Faster installation than cast‑in‑place alternatives in many cases.
• Versatility: Adapts to different pile materials (steel, concrete, timber) and sizes.
• Controlled precision: Modern hydraulic and vibratory types allow accurate depth and alignment.
• Scalability: From small jobs with mini‑rigs to massive marine projects with floating units.
